valve shape, help please

#1 PostAuthor: Peteypops23 » Sun Feb 13, 2022 10:11 am

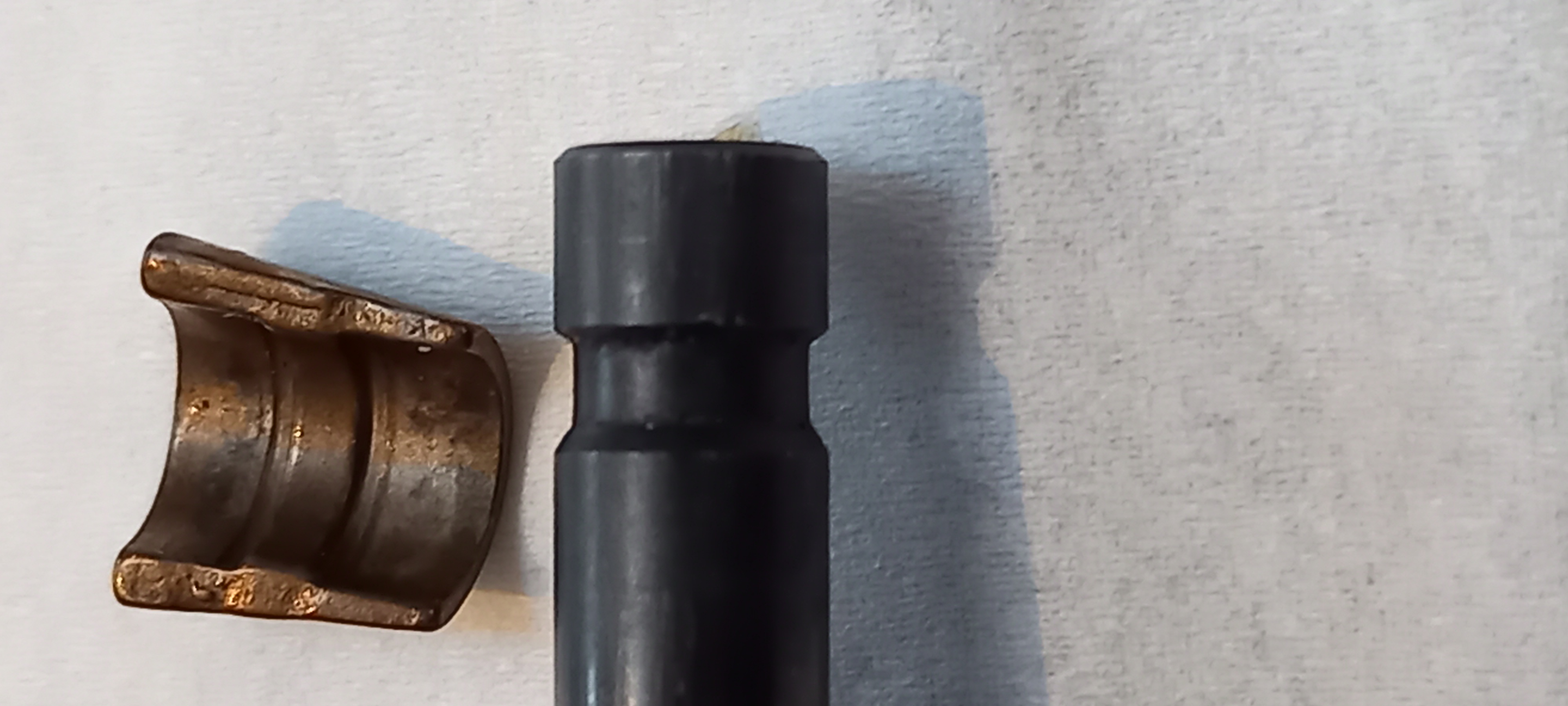

Guys, I don't have anything to compare the valve and collet shapes with sooooooo....

Is this round or square??
Yes I know its a stupid question but I just need clarification :D Eyesight ain't as good as it was either!!
It's out of a z1b but may have been replaced at some point.
Cheers
Pete
Top
User avatar
warren3200gt
Hardcore
Hardcore
Posts: 3102
Joined: 13th Jun 2014
Location: Dartford Kent

Re: valve shape, help please

#2 PostAuthor: warren3200gt » Sun Feb 13, 2022 10:46 am

It's not round or square it's a chamfered square.
Bit like this \_______/ but the angle of the lower chamfer is less than the higher one.
PUM 488 June 2026
76 Z900A4, 77 Z650B1, 77 KZ650B1, 77 Z1000A1, 82 Z1000J2, ZRX1100R.
Top
User avatar
zed1015
Hardcore
Hardcore
Posts: 4036
Joined: 2nd Nov 2005
Location: Somewhere between Scunny and Goole.

Re: valve shape, help please

#3 PostAuthor: zed1015 » Sun Feb 13, 2022 11:19 am

Even though it's not actually square , That is known as a square keeper and groove.
Top
Peteypops23
100Club
100Club
Posts: 190
Joined: 12th Jan 2021
Location: Gretna Green

Re: valve shape, help please

#4 PostAuthor: Peteypops23 » Sun Feb 13, 2022 11:24 am

cool, thanks for the clarification guys.
Much appreciated.
Pete
